TECH RIDER

Technical Equipment
  • All Instruments are provided by the artist, including own microphone, keyboard stand and mic stand.
  • Requires an additional mic and mic stand for talking which goes directly into the sound engineers desk.
  • Requires a minimum of 2 power stripes, one on each side of stage.
  • Amplification: to have two sub speakers and respective tops to match e.g RCF. In case even one sub speaker and two tops can be sufficient.
  • All audio will go through the Behringer DI800 before going to the sound engineers desk.
  • Ash Sales plays with IEM which is mixed within Ash’s system. No need for stage monitoring.
  • If the loopers signal is too LOUD, the main volume knob on right hand side of screen can be reduced. This will impact the monitor volume.



Ch. No

Patchbay Out


1

1

L - Looper

2

2

R - Looper

3

3

High samples

4

4

Low sample

5

N/1

Talk Mic

6

5

Guitar (Additional)

7

6

Bass track on looper (Additional)



Artists Equipment
  • Acoustic Guitar
  • Samson Wireless unit - for Acoustic
  • Effects units (in rack unit)
  • Wild Dog Stomp
  • Mic Beta 58
  • Looper (RC505 mkll)
  • Idoru - P1 (Backing track player and Digital Clock)
  • Behringrer Ultra DI800 (In rack)
  • XLR Patchbay (In rack)
  • Behringer X-air 12 Mixer (Inear)
  • LD Systems Wireless unit (In ear monitor) (In rack)
  • Rocktron Midi radar


Incase of fly in shows additional equipment needs to be supplied.

  • Keyboard stand
  • Mic stand


Midi signal chain
  • Idoru p-1 -out
  • In - Midi radar - out - into merger
  • Nectar Pacer - out- into merger
  • Miditech midi merger - out
  • Guitar effects and Looper.



Logistical requirements

  • Minimum of 40minutes to set up all equipment and to test midi and audio.

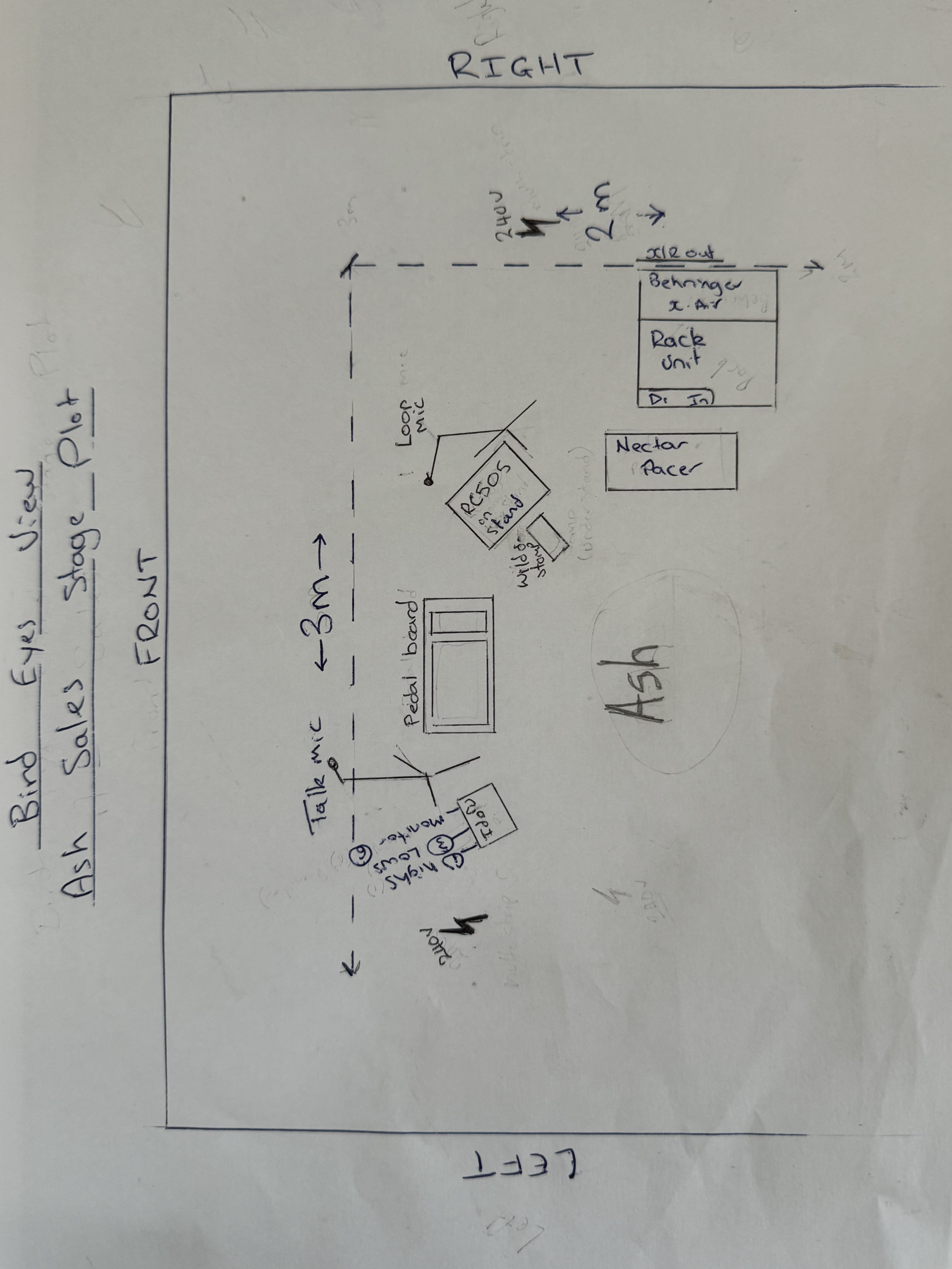

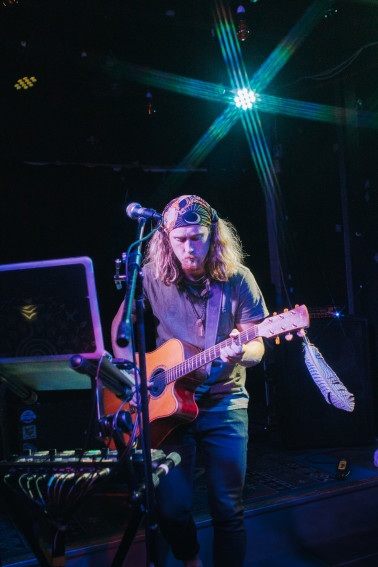

  • Minimum of 2m deep x 3m width spacing for stage. See attached photo of set up design.
  • Carpet is idea as the artist performs with no shoes.
  • Pedalboard containing midi radar and expression pedals is facing front on.
  • The looper is on a keyboard stand right hand side of pedalboard at a 45 degree angle. Artists mic stand in front of keyboard stand.
  • Rack unit 90 degrees right hand from pedal board.
  • Supplied mic left hand of pedal board.
  • Idoru p-1 left hand of pedal board.


Lighting/Visual
  • A digital file for backdrop contains ash sales music logo, if applicable.
  • Using warm colours that are yellow, golds. Creating a mystery vibe.
  • Use of smoke machine is ideal.
  • Worth while in house technician to have a listen to
